2.25 Watts/ft LovoFlex LED Strip Lighting

Product Description

LovoFlex LED Strip Lighting 2.25 Watts/ft is a versatile strip that offers the highest level of brightness in the Prism range. At 2.25W/ft and 24Vdc and made with top-tier authentic premium Epistar SMD LEDs on a flexible PCB strip, the will suit almost all strip applications. They are designed for interior and exterior use, the flexibility allows for bending and twisting in just about any direction imaginable. All strips are easily installed with authentic TESA double-sided tape mounted on the backside of the flexible PCB ribbon. The Prism range of LED flexible strips will work with our Dimmer Controller to achieve more effects.

Non-waterproof strip ribbon can be cut every 3 LEDs at 4″ or 10cm length – a clearly-marked line shows exactly where to cut. Pairs of indicated solder points provide great contact for attaching/soldering wires – each cut section is indicated with a + sign for positive and a –  sign for negative.

LovoFlex™ LED Strip Lighting series uses Tesa Tape, one of the world’s leading manufacturers of self-adhesive products since 1936.

***Almost all  Prism Lighting Group LOVOFLEX™ LED Flexible Strip and MTO (Made To Order) Rigid strips is sold by the Foot, not by the 5M reel. Our Flexible ribbon is available in bulk Purchasing up to 25M or 82ft reels. Our Rigid Aluminum Profile also sold by the foot, is also available up to 78″ (2M) lengths.***

Product Specifications

Item No. 6010-FL-2.25W24V-xxK

Length20Ft (6M) or 100Ft (30M)
Color Temperature2700K
Wattage2.25 Watts/Ft / 7.2 Watts/M
Lumens2700K - 146lm/Ft / 480lm/M (Warmer White)
3000K - 152lm/Ft / 500lm/M (Warm White)
3500K - 160lm/Ft / 525lm/M (Warm White)
4000K - 180lm/Ft / 590lm/M (Natural White)
6000K - 183lm/Ft / 600lm/M (Pure White)
Maximum Run25 Ft / 7.6 M
Beam Angle120 degree
MaterialWhite PCB, Tesa® Tape Backing
CuttabilityEvery 6.5” (166.6mm)
IP RatingIP43
IP67 (other IP options Available Upon Request)
Dimensions10mm (.39”)W x 2mm (.08”)H x Reel Length
SwitchingHardwire or Plug-in
MountingAttached Tesa® Tape or Extrusions
LED Type & SizePremium Epistar SMD 2835
LED Qty9 LEDs/ft / 30 LEDs/M
Rated Life50,000 Hours
Warranty5 Years
CertificationscULus 469399

Spec Sheet

Product Application

This product is great for:

  • Cabinet Lighting
  • Pool Lighting
  • Exterior Lighting
  • Cove Lighting
  • Car and Trucks Lighting
  • Staircase Lighting
  • Pathway Lighting
  • Room and Office Lighting
And many more…

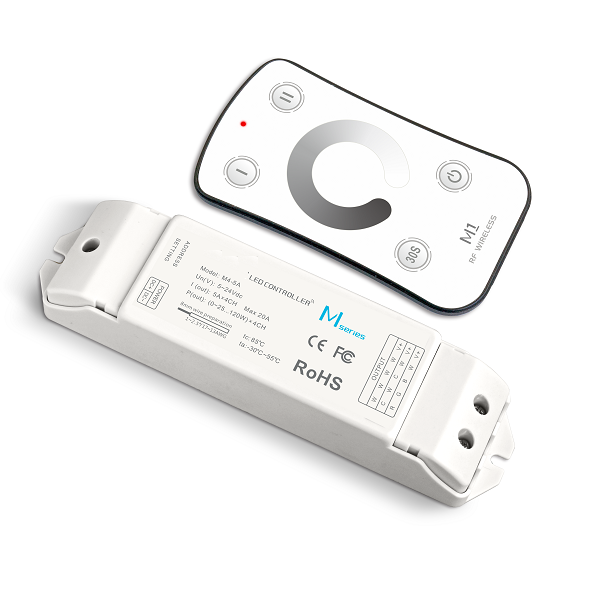

LED Dimming Remote
