Product Description
The newly developed 5060 RGBWW strip is perfect for indirect lighting, allowing for not only Red, Green, and Blue but also bringing into the lighting effect a white LED. Prism offers in both Warm white LED (3000K) and Pure White LED (6000K)).

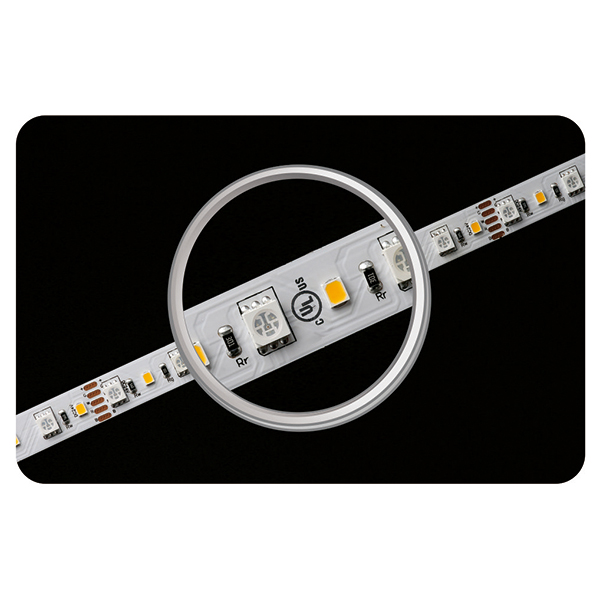

Prism Lighting Group™ RGBW SMD 5060 Flexible Strip is our original premium quality RGBW strip. The 5050 SMD LEDs not only provides brilliant brightness but also fabulous color changing properties, over 16+ million colors to be exact. Red, Green and Blue Tri 5060 LED chip. With our pre-programmed RF remote RGBW Controller or DMX interface decoder, you will be able to reach almost any color you desire.
Designed for interior and exterior use, this will allow you to grab attention at your next trade show. You are able to bend and twist in just about any direction imaginable.
LovoFlex™ LED Strip Lighting series uses Tesa Tape, one of the world’s leading manufacturers of self-adhesive products since 1936.
Product Specifications
Product Number 6070-FL-7W24V-RGBW
| Voltage | 24VDC |
| Length | 20Ft (6M) or 100Ft (30M) |
| Wattage | 7 Watts/Ft / 23 Watts/M |
| Color Temperature | RGB Mix 100% |
| Lumens | 494 lm/Ft / 1620 lm/M (Mix 100% RGBW)
34 lm/Ft / 110 lm/M (Red)
116 lm/Ft / 380 lm/M (Green)
21 lm/Ft / 70 lm/M (Blue)
162 lm/Ft / 530lm/M (RGB White, 100%)
213 lm/Ft /700 lm/M (White 2700K)
332 lm/Ft / 1090 lm/M (White 6000K) |
| Wave Length | 650nm to 750nm (Red)
490nm to 575nm (Green)
420nm to 490nm (Blue) |
| Maximum Run | 25 Ft / 7.6 M |
| Beam Angle | 120 degree |
| Dimming | Yes |
| Material | White PCB, Tesa® Tape Backing |
| Cuttability | Every 4.9” (125mm)) |
| IP Rating | IP43 or IP67 (other IP options Available Upon Request) |
| Dimensions | 12mm (.47mm)W x 2mm (.08”)H x Reel Length |
| Switching | Hardwire or Plug-in |
| Mounting | Attached Tesa® Tape or Extrusions |
| Material | White PCB, Copper Strip, Tesa® Tape Backing |
| LED Type & Size | Premium Epistar RGB SMD 5060 + White SMD 5050 |
| LED Qty | 30 LEDs/ft / 96 LEDs/M |
| Warranty | 5 Years |
| Rated Life | 50,000 Hours |
| Certifications | cULus 469399 |
Spec Sheet
