Product Description

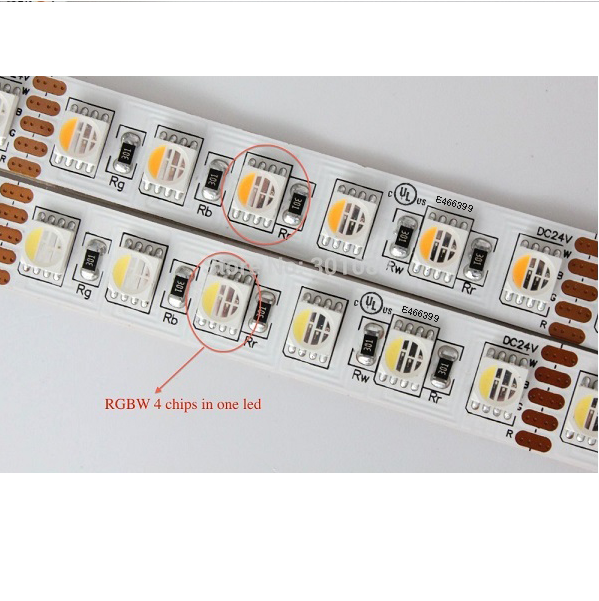

Prism Lighting Group RGBW SMD 5060 Flexible Strip is our original premium quality RGBW strip. The 5060 SMD LEDs not only provide brilliant brightness but also fabulous color changing properties, over 16 million colors to be exact. The New 4 in 1 LED has Red, Green, Blue and Warm White Quad LED Chip. With our pre-programmed RF remote RGBW Controller or DMX interface decoder, you will be able to reach almost any color you desire.
Designed for interior and exterior use, this will allow you to grab attention at your next trade show. You are able to bend and twist in just about any direction imaginable.
Every piece of LED strip comes equipped with the strongest adhesive backing on the market today. LovoFlex™ LED Strip Lighting series uses Tesa Tape, one of the world’s leading manufacturers of self-adhesive products since 1936.
UL Certified
Product Specifications
Product Number 6070-FL-5.8W24V-RGBW-4in1
| Voltage | 24VDC |
| Length | 20Ft (6M) or 100Ft (30M) |
| Wattage | 5.8 Watts/Ft / 19 Watts/M |
| Color Temperature | RGB Mix 100% |
| Lumens | 357 lm/Ft / 1170 lm/M (Mix 100% RGBW)
34 lm/Ft / 110 lm/M (Red)
116 lm/Ft / 380 lm/M (Green)
21 lm/Ft / 70 lm/M (Blue)
190 lm/Ft / 620lm/M (RGB White, 100%)
137 lm/Ft /450 lm/M (White 2700K)
168 lm/Ft / 550 lm/M (White 6000K) |
| Wave Length | 650nm to 750nm (Red)
490nm to 575nm (Green)
420nm to 490nm (Blue) |
| Maximum Run | 25 Ft / 7.6 M |
| Beam Angle | 120 degree |
| Dimming | Yes |
| Material | White PCB, Tesa® Tape Backing |
| Cuttability | Every 4” (100mm) |
| IP Rating | IP43
IP67 (other IP options Available Upon Request) |
| Dimensions | 12mm (.47mm)W x 2mm (.08”)H x Reel Length |
| Switching | Hardwire or Plug-in |
| Mounting | Attached Tesa® Tape or Extrusions |
| Material | White PCB, Copper Strip, Tesa® Tape Backing |
| LED Type & Size | Premium Epistar 5060 |
| LED Qty | 18 LEDs/ft / 60 LEDs/M |
| Warranty | 3 Years |
| Rated Life | 50,000 Hours |
| Certifications | cULus 469399 |
Spec Sheet
