PAL25XL LED Linkable Display Arm Light

Product Description

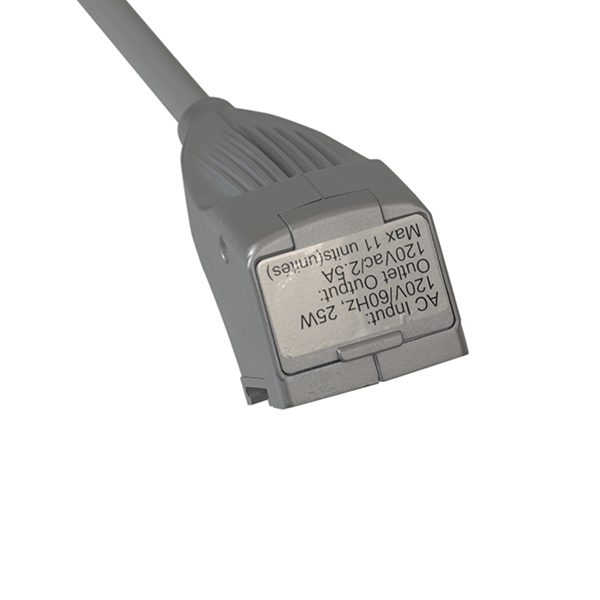

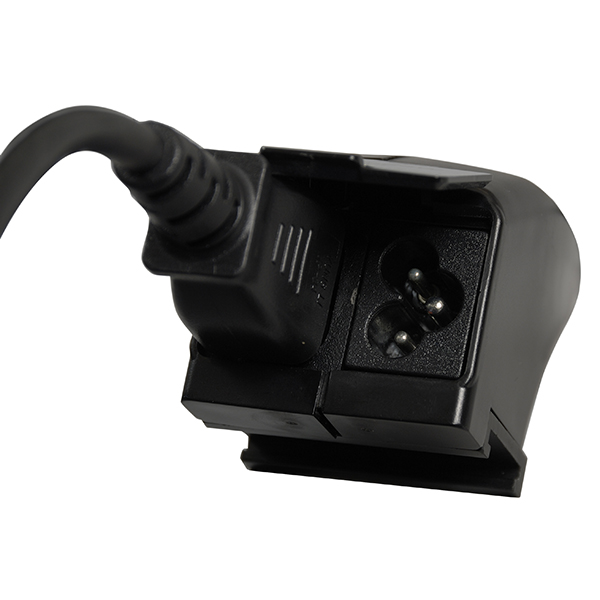

The New PAL25XL is the next generation series of the Prism Original certified LED display arm light without the need for an external power supply. Using AC/DC Rectification Technology, the PAL25XL uses conventional power to energize the display arm light, standard AC power cord and the option to connect 11 PAL25XL display arm lights using 1 power cord and 10 linking cords. The PAL25XL is form, function and innovation all rolled into one. No other LED display arm light has our inlet/outlet discretely mounted in the rear of the base so as not to have the power and linking cables visible.

Product Specifications

Product Number : 4000-PAL25XL-xxFIN

Light Source: Samsung High Power SMD LED
Input Voltage : 24V DC
Power Consumption (W): 25 Watts
LED QTY: 36 LEDs
Lumens: 2400lm
LED Color Temperature: 4500 K
CRl: 90+
AC IN 120V operate of AC current: 0.22A ±tolerance 10%
AC Outlet Socket: 120V
Finish (xxFIN): Black (BLK)
Silver (SLV
White (WH)
Custom Color (CUSTOM)
Power Cord: 10ft
Coupler Cable: 6.5ft
Lumens: 2400lm
Measurements: Total Length 21”
Light Head 6.9” x 3”
Heat Sink Temperature: 65°C
Base: Universal Metal slide base
Certification: cTUVus

Spec Sheet

Product Application

This product is great for:

  • Tradeshow Display Systems
  • P.O.P and Product Displays
  • Hanging Signage
  • Kiosks, Showrooms and Galleries
  • Truss Structures
  • Tension Fabric and Metal Extrusion Systems
