Madrix Plexus

Contact Prism to purchase.

Description

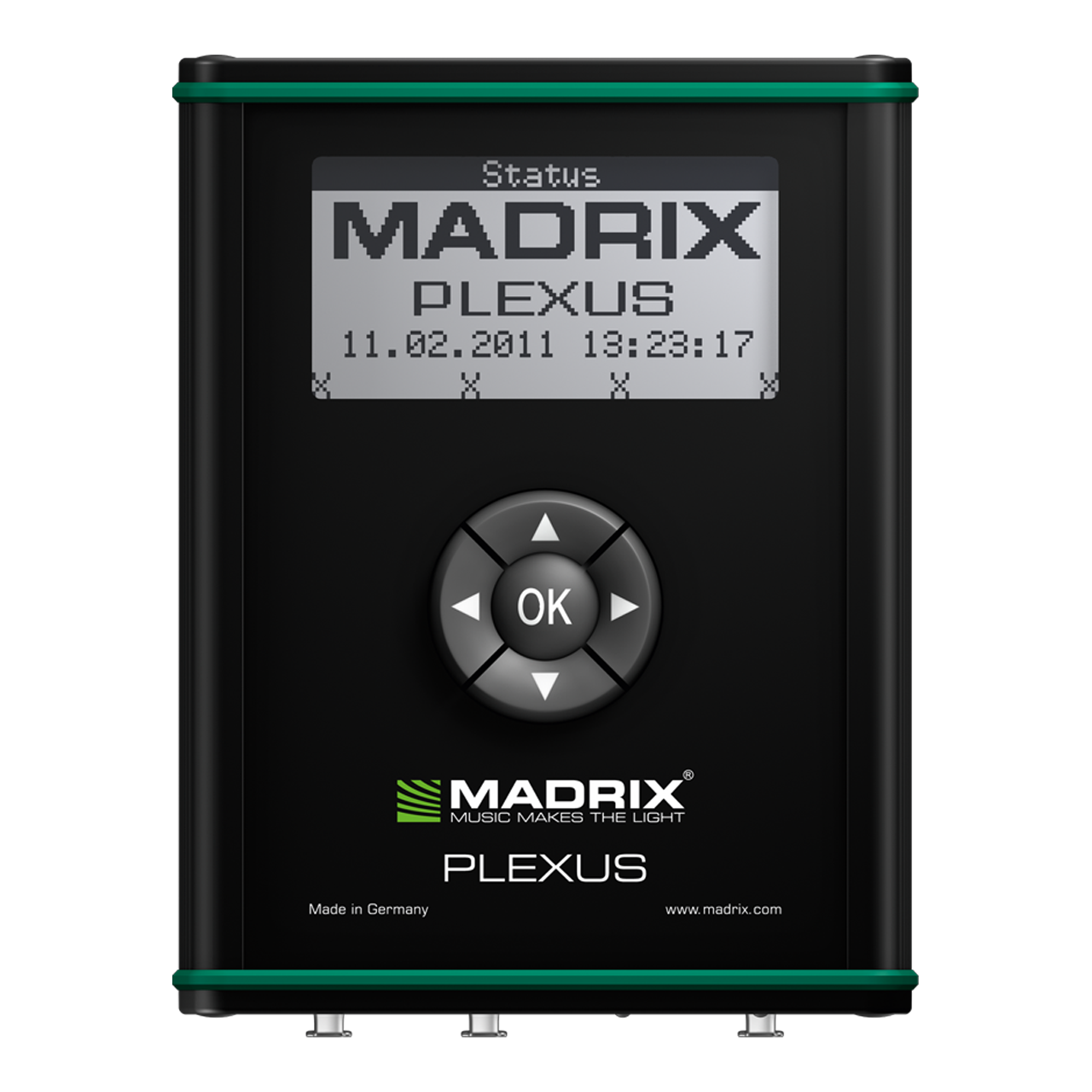

The MADRIX PLEXUS is the next-generation live or stand-alone interface for LED lighting control. It includes the MADRIX PLEXUS DMX512/Art-Net interface as well as the feature-rich MADRIX Software for LED control including MADRIX 3 Software license. It can be used as a live interface or for stand-alone playback of MADRIX light shows and effects from SD card as well as supports also time-controlled stand-alone shows.
PLEXUS is a Powerful LED lighting control software with endless possibilities to create visual effects and lighting scenes.

MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software. It allows you to realize all kinds of different LED projects and lighting designs as wekk as allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping). MADRIX software generates unique effects, visuals, and animations live and in real time. It already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, etc.). Plus, it analyzes incoming audio signals Sound2Light and Music2Light in real time. With a variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.), New lighting scenes can easily be created in seconds!

It has 256 x 256 Storage Places to organize and store effects, DJ-like operation with 2 decks (Left/Right) and a crossfader,  3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation) and Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures).

Product Specifications

Technical Specifications:

- Power supply: External, AC 100 V - 240 V, 50/60 Hz input, DC 5.2 V and 1000 mA max. output over USB; 10 °C to 40 °C (Operating temperature); -10 °C to 60 °C (Storage temperature); 20 % to 80 %, non-condensing (Relative humidity); 10 % to 80 %, non-condensing (Storage humidity)
- Power consumption: 2.5 W max. (500 mA max.)
- USB: USB 2.0, type B port, Power over USB
- DMX512: 2x 512 DMX channels, input or output
- DMX512 ports: 5-pin, XLR, female, NEUTRIK
- Ethernet/Art-Net: RJ45, 10/100 MBit/s, Auto MDI-X, NEUTRIK etherCON
- Extension port: 15-pin, D-Sub, US, female
- SD card slot: SD (2 GB max.) and SDHC cards (32 GB max.) supported
- Display: 3” LCD graphics display
- Handling: 5 control buttons
- Case: Metal enclosure, IP20
- Dimensions: 154 mm x 111 mm x 45 mm (length by width by height)
- Weight: 500 g
- Temperature range: 10 °C to 50 °C (Operating) / -10 °C to 70 °C (Storage)
- Relative humidity: 5 % to 80 %, non-condensing (Operating / Storage)
Connectivity:

- 2x DMX-IN/OUT
- 1x RJ45 Ethernet port
- 1x Extension port
- 1x SD card slot
- 1x USB port

Package Contents:

- 1x MADRIX PLEXUS
- 1x 4 GB SDHC card (inserted into the device)
- 1x USB power supply
- 1x USB cable
- 1x World power plug adapters kit
- 1x Quick start guide / technical manual
- 1x CD-ROM incl. MADRIX Software and USB drivers
