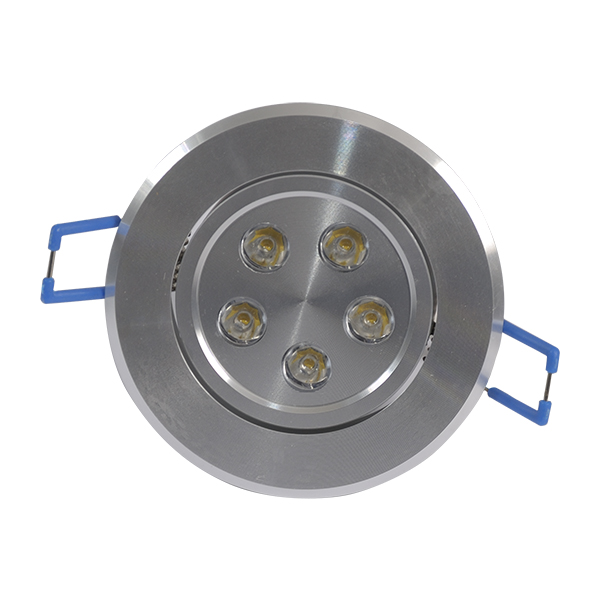

LED Down Light M5xC1W NW 24V


Product Description

LED down light constructed with current drivers built in to the circuit board (does not require external driver). The only power source required is a 12V/24dc power supply. It comes complete with an in-and-out quick connect wiring harness attached, so no wiring back to the power supply required. Just connect the quick connects and away you go, simple and fast. Optional power supplies, wiring harnesses and extensions available.

Product Specifications

Electrical Characteristics:
•Electrical structure: 1 PCB+ 5 LED
•Input voltage: 24Vdc
•Input current: Inline constant current 350mA driver
•Power consumption: 5 Watt

Photometric Characteristics:
•Light source: 5x1Watt CREE LED
•Color temperature: Warm white 2800-3300K ; Cool white 4000-4500K
•Lens angle available: 45°
•Color Rendering Index: CRI>75
•Lumen output: Warm white 400LM ; Cool white 450LM

Mechanical Characteristics:
•Material: aluminum
•Surface finish: High gloss finish with tilting gimbal feature
•Working temperature: 45 degrees Celsius at room temperature 25 degree Celsius
•Ambient temperature: -40~50 degrees Celsius
•Dimension: 83x(H)45mm
•Cutout size: 68mm

•Cabinet lights, Display lights, Museum and Retail Environments
