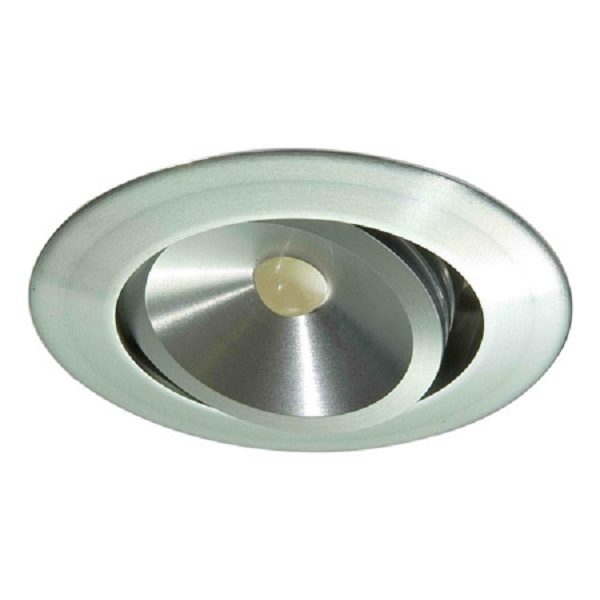

PTSL-104B-C3W-NW-12V LED Down Light


LED down light constructed with current drivers built in to the circuit board (does not require external driver). Only power source required is a 12V/24dc power supply. Comes complete with an in/out quick connect wiring harness attached, so no wiring back to power supply. Just connect the quick connects and away you go, simple and fast. Optional power supplies, wiring harnesses and extensions available. Custom Finishes available on quantities over 25 pcs.

Product Specifications

LED Type: Cree
Color: Cool White (5000k +-10%) ; Warm White (3000k +-10%)
Luminous Flux: CW 150lm ; WW 135lm
Beam Angle: 120 degree
Constant Current LED Driver Built In
Input Voltage: 12Vdc (power supplies available)
Watts: 3W
Dimensions: 51.5mmDx25mmH/2.03”Dx98”H
Cut out Size: 42mm/1.65”
Finish: Chrome

Spec Sheet

SKU: 3050 Category: Tag:
