Aluminium LED Profile with Angled Beam

Product Description

Prism has released a line of rigid aluminum extrusion made specifically for flexible LED strip lighting. What makes our rigid aluminum extrusion different from most is not only do we sell our rigid aluminum extrusion by the foot (not by the length) but we also have our rigid aluminum extrusion available in 78 3/4″ (2M) single lengths. Now you can create a custom rigid LED strip light to within a 1/8″, off the shelf rigid lighting products do not give you that flexibility. You can customize the lighting for your next exhibit to not only the length but also the wattage intensity per foot, we will work with you on creating the strips you need with our in-house electronic technicians or sell you the product you require and you can build it right at your shop. PLG-ALP1919-AL

INCLUDES: Lens and Extrusion.

***Almost all  Prism Lighting Group Aluminum LED profiles are sold by the Foot

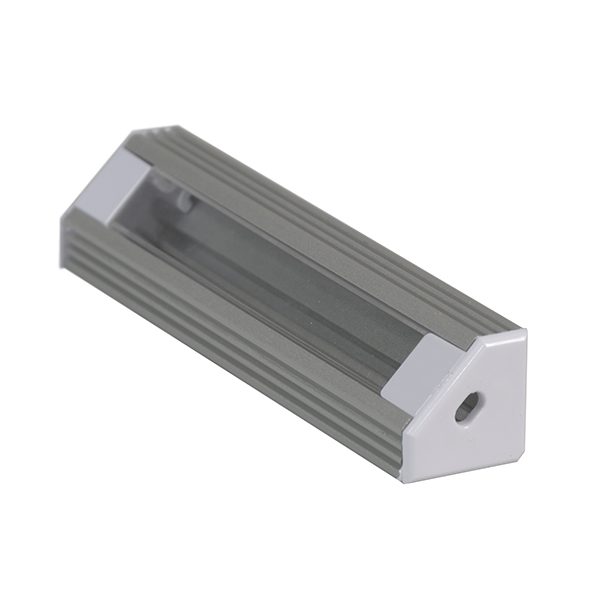

PTSL-ALP1919-AL. Angle Profile

Product Specifications

Ingress Protection Rating: IP20 (standard)
Available lengths: 2.5m (96" / 8') (3M special Order or can be cut to any size)
Material: Body – aluminum, cover – polycarbonate (PC), end cap – polypropylene (PP), mounting bracket, spring – steel
Lighting Transmittance: Clear Cover, 94%; Frosted Cover, 70-90%; Milky Cover, 50%.
Operating temperature range: -30~+100℃
Flammability: V2 Fire Rating for PC Cover.
UV stability: Ageing resistance for more than 3 years.
Heat stability: Under 100℃.
UL94 rating: UL94V2
Manufacturing tolerances: ±0.5mm.
Grade of aluminum: 6063-T5
Grade/Type of anodizing: 6063-T5Ecru oxidation and Grind arenaceous oxidation
Heat transmission properties: Aluminum specific heat is 0.88x10J/(Kg x ℃)
