LOVOFLEX LED ECO SHEET

Product Description

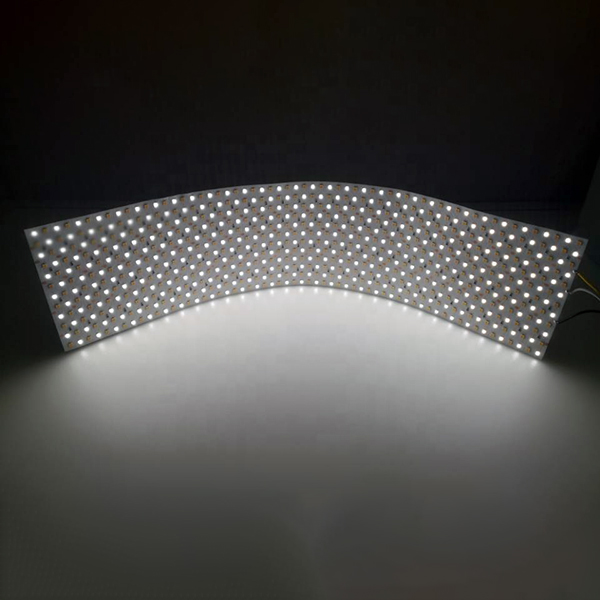

Lovo™Flex LED ECO Sheets are the best choice for modular back lighting solutions for shallow, curved or uniquely designed light boxes. We challenged our engineering team with creating a solution the was an affordable solution over the standard light box solutions that maximize light output and simplifies installation. Our team stepped up and created the most cost-effective and easy-to-install LED Flexible Sheet on the market/in the industry.

Lovo™Flex LED ECO Sheets offers you these amazing features:

  • More square footage on a single power supply – Up to 36sq/ft!
  • Maximizing Single power supply lowers cost per sq/ft
  • Reduce installation time with plug and play connections.
  • Simplify estimating and installation with 1 sq/ft sheets.
  • Back light shallow light boxes as thin as 1” (25mm) depth.
  • Create Round, Triangle, Octagon, or uniquely designed light boxes with cutlines of 1” (25mm) squares.
  • Light weight to reduce shipping costs.
  • LED ECO Sheets are exactly 1sq/ft(300mm).
  • Cutlines are on 1” (25mm) squares.

Ready to create your unique lightbox? Contact us to place your order.

Product Specifications

Product Number6090-FL-SHT-9W24V-6K
Voltage24VDC
Wattage9 Watts per Sq/Ft / 29.5 Watts per Sq/M
Panel Dimensions1/SqFt Sheet, 1 x 1ft (300mm x 300mm)
Color Temperature6000K
Lumens271lm/Ft / 890lm/M (Pure White)
Sheet LED Qty144 LEDs/Sheet
Cut Line1” x 1” (25mm x 25mm)
DimmingYes
Beam AngleW120 Degree
IP RatingIP20
CRI>90
Rated Life50,000 Hours
Warranty3 years
CertifcationscULus 469399

Spec Sheet

Product Application

This product is great for:

  • Shallow Light Boxes
  • Curved Light Boxes
  • Trade shows
  • Retail Fixtures Back lighting
  • LED Signage
  • Graphc LED Light box
