Tapered Profile Aluminium Channel Extrusion with Cover 17x15mm

Product Description

The extrusion is made from high-quality Aviation 6063-T5 aluminum alloy with Double-Anodized and is designed for flexible or rigid LED strips that are 10-12mm wide. One of the accessories offered for the extrusion are covers that shade and protect LEDs inside the profile. There are several cover options: Clear, Frosted, Milky. Covers are made of polycarbonate and are certified for excellent resistance to all weather conditions and UV radiation, as well as being flame-retardant. Standard polypropylene end caps and mounting brackets (made from steel with zinc or chrome finish) are used for the extrusion as supplementary accessories. End caps protect the extrusion from dust and other undesirable elements, which can make LED strips dirty and consequently deteriorate the lighting parameters. The extrusion can be mounted to surfaces with the use of double-sided adhesive tape or mounting brackets. The mounting bracket guarantees easy and secure mounting of the extrusion to the desired surface. It can also be used as a connector between extrusions.

***Almost all Prism Lighting Group Aluminum LED profiles are sold by the Foot

Product Specifications

Item Number: 6100-AP-SM-1715

Ingress Protection Rating IP20 (standard)
Available lengths 2.5m (96 /" 8') (3M special Order)
Material Body – aluminum, cover – polycarbonate (PC), end cap – polypropylene (PP), mounting bracket, spring – steel
Lighting Transmittance Clear Cover, 94%; Frosted Cover, 70-90%; Milky Cover, 50%
Operating temperature range -30~+100℃
Flammability V2 Fire Rating for PC Cover
UV stability Ageing resistance more than 3 years.
Heat stability Under 100℃.
UL94 rating UL94V2
Manufacturing tolerances ±0.5mm
Grade of aluminum 6063-T5
Grade/Type of anodizing Ecru oxidation and Grind arenaceous oxidation
Heat transmission properties Aluminum specific heat is 0.88x10J/(Kg x ℃)

Spec Sheet

Product Application

This product is great for interior lighting, especially to light:

  • Cabinets

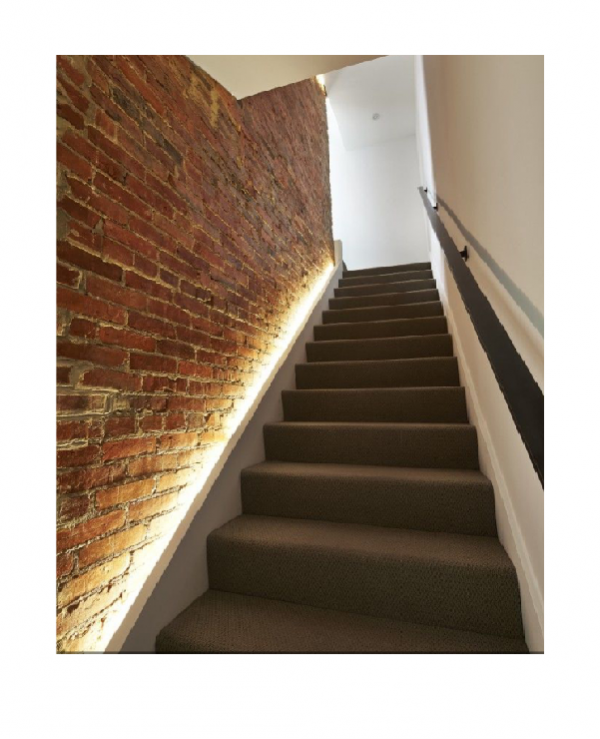

  • Stairs
  • Glass-cases
  • Decoration in drywall ceilings
